Through the-weave 10 inch PVC Layflat Hose 10 bar 150psi for Frac Water Discharge

This hose is designed for water discharge, and irrigation, construction etc.

Construction: Circular polyester weave extruded internally and externally with PVC-NBR.

Hose shall be made from 100% high tenacity synthetic yarn circular woven and completely, protected and locked-in by tough highly resistant synthetic nitrile rubber, forming a single homogenous construction without the use of glues or adhesives of any type.

Color: Black, Yellow or Red
Temperature range:--40° to 150°F (-40° to 65°C)
Elongation at WP:<1.5%
Expansion at WP:<5%

Standard Length: 50ft, 100ft, 300ft, 330ft, 20m, 30m, 91.5m, 100m etc.

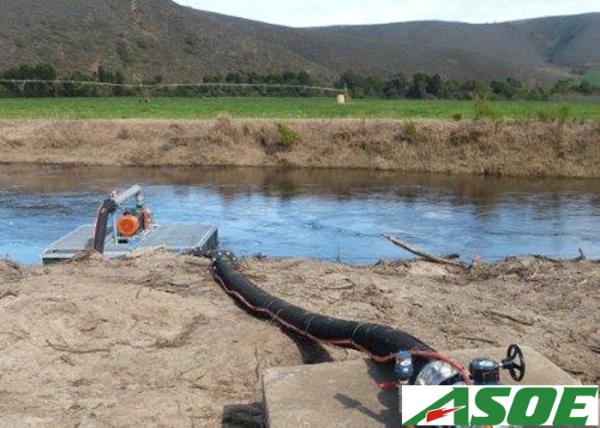

• Water Discharge

• Temporary installations (by-passes)

• Construction

• Irrigation

Comparable to: Oroflex 10, Oroflex 20 etc.

Asoe manufactures differnt hoses, including through-the-weave PU layflat hoses, through-the-weave NBR layflat hoses and jacketed fire hoses etc. Jacketed fire hoses are lined with EPDM, Polyurethane (PU), Nitrile rubber (NBR), PVC, Natural rubber (NR) and CR etc. Asoe fire hoses can meet or exceed the technical standard requirement of NFPA 1961, UL19, FM2111, EN14540, EN14811, DIN and BS6391 etc. Some PU covered layflat hoses meet NSF61 standard, which are appropriate for transfering potable water.

Asoe designs and manufactures hose couplings which works with Asoe hoses. According to different technical requirement in different applications, Asoe team design appropriate couplings. The materials applied in couplings are aluminum, carbon steel, stainless steel 304, SS316, SS316L, PA6 reinforced Nylon, PE, and PP etc. The couplings includes LDHC series of couplings, HPHC FM couplings, Storz couplings, camlocks, instantaneous forestry couplings, bauer couplings, etc.

Asoe offer some equipments which are used to handle hoses, assembly hoses, installing hose projects etc.

Asoe team would like to work with its customers to design new customized solutions which no other layflat hoses manufacturer can supply. Asoe team have enthusiasm in challenging new hose solutions and have expertise in hoses manufacturing, designing, and application, which ensure that Asoe can be a strong back for its customers.

Asoe continously created a lot of new hoses solutions in different industries. These webpages can't details all of them. You are welcome to contact Asoe's sales team.
