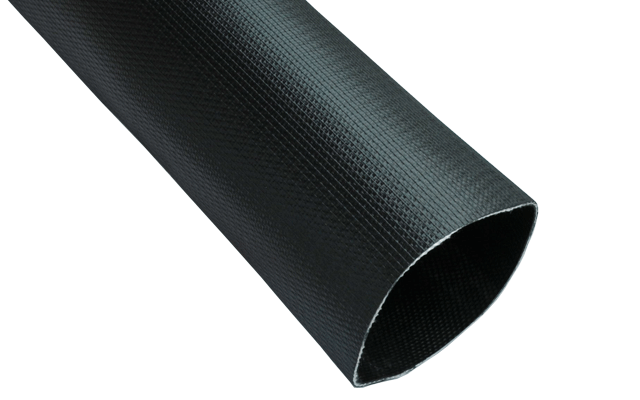

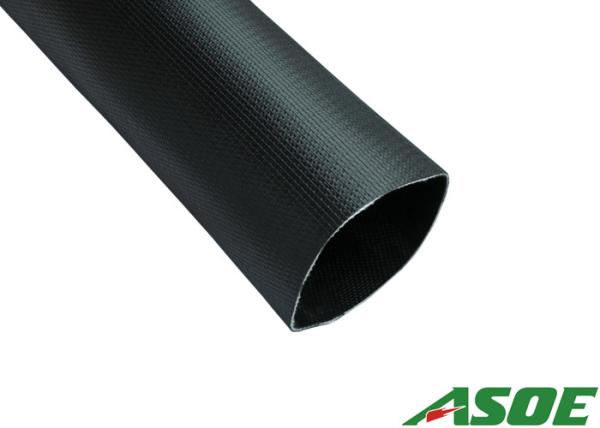

Nitrile Rubber Covered Layflat Discharge Hose 8inch 30bar BP

Construction: Circular polyester weave extruded internally and externally with NBR-PVC.

Hose shall be made from 100% high tenacity synthetic yarn circular woven and completely, protected and locked-in by tough highly resistant synthetic nitrile rubber, forming a single homogenous construction without the use of glues or adhesives of any type.

Lining Properties:
a. Ultimate Tensile Strength:
Tensile strength of the lining and cover shall not be less than 1500 psi (10,500 kpa ).
b. Ultimate Elongation:
400% minimum.
c. Accelerated Aging Test

The tensile strength and ultimate elongation of the vulcanized rubber compound which has been subjected to the action of oxygen at a pressure of 300 psi +/- 10 psi , (2100kpa +/- 70kpa) and temperature of 70 degrees centigrade +/-1 degree centigrade (158 F +/- 18 F ) for a period of 96 hours shall be , greater than 60% of the original properties stated.

Color:Black ribbed
Temperature range:From -20 C deg to 80 C deg (-4 F deg to 176 F deg)
Elongation at WP:<1.5%
Expansion at WP:<6%
Abrasion:6000 DIN cycles

Standard Length: 660ft

Applications:

• Washdown

• Drainage pumps

• Water Discharge

• Drainage

• Irrigation installations

• Pumping of sludge and liquid fertilizers

• Temporary installations (by-passes)

*Not recommended or approved for fire fighting or frac water transferring.

Recommended for Industrial Water Discharge Solution.

Comparable to

Oroflex 10 of Tipsa, Superflow of Key, etc.

Asoe manufactures differnt hoses, including through-the-weave PU layflat hoses, through-the-weave NBR layflat hoses and jacketed fire hoses etc. Jacketed fire hoses are lined with EPDM, Polyurethane (PU), Nitrile rubber (NBR), PVC, Natural rubber (NR) and CR etc. Asoe fire hoses can meet or exceed the technical standard requirement of NFPA 1961, UL19, FM2111, EN14540, EN14811, DIN and BS6391 etc. Some PU covered layflat hoses meet NSF61 standard, which are appropriate for transfering potable water.

Asoe designs and manufactures hose couplings which works with Asoe hoses. According to different technical requirement in different applications, Asoe team design appropriate couplings. The materials applied in couplings are aluminum, carbon steel, stainless steel 304, SS316, SS316L, PA6 reinforced Nylon, PE, and PP etc. The couplings includes LDHC series of couplings, HPHC FM couplings, Storz couplings, camlocks, instantaneous forestry couplings, bauer couplings, etc.

Asoe offer some equipments which are used to handle hoses, assembly hoses, installing hose projects etc.

Asoe team would like to work with its customers to design new customized solutions which no other layflat hoses manufacturer can supply. Asoe team have enthusiasm in challenging new hose solutions and have expertise in hoses manufacturing, designing, and application, which ensure that Asoe can be a strong back for its customers.

Asoe continously created a lot of new hoses solutions in different industries. These webpages can't details all of them. You are welcome to contact Asoe's sales team.
