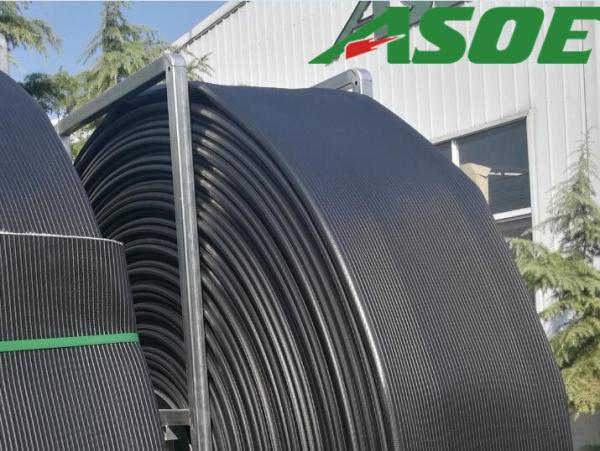

Through the Weave Thermoplastic Rubber ( TPR ) Layflat Hose for Water Transfer 100% High Tenacity Synthetic Yarn

Chemvey is one type of super heavy-duty through-the-weave Thermo Plastic Rubber (TPR) covered hose.
Chemvey hoses shall be made from 100% high tenacity synthetic yarn circular woven and completely, totally embedded in the TPR compound, excellent protected against mechanical damage, forming a single homogenous construction without the use of any glues or adhesives of any type.
Due to a state of the art extrusion process that completely and uniformly embeds the circular jacket in the TPR compound, Chemvey offers excellent protection against mechanical damage. The result is a singular and homogenous hose constructed without glues or adhesives

Features
♦ UV resistant
♦ Highly abrasion resistant
♦ Water resistant
♦ Chemical resistant
♦ Acid resistant
♦ Cold resistant


Color: Black
Hose Construction: single-extrusion embeds Thermoplastic Rubber (TPR) compound into high tenacity polyester yarn, ribbed cover increases abrasion resistance
Inner tube and cover: Smooth TPR cover and tube
Reinforcement: Circular woven polyester jacket
Temperature range: From -40° F to 149° F (-40° C to 65° C)
Standard length: 660ft (200m), 330ft (100m), 300ft (91.5m), 100ft(30.48m), custom lengths available upon request.
Couplings: LDHC V (groove), LDHC F/M, and Storz couplings, etc.
Remark:When hoses are used for produced water, couplings should have chemical resistant coating

Asoe manufactures differnt hoses, including through-the-weave PU layflat hoses, through-the-weave NBR layflat hoses and jacketed fire hoses etc. Jacketed fire hoses are lined with EPDM, Polyurethane (PU), Nitrile rubber (NBR), PVC, Natural rubber (NR) and CR etc. Asoe fire hoses can meet or exceed the technical standard requirement of NFPA 1961, UL19, FM2111, EN14540, EN14811, DIN and BS6391 etc. Some PU covered layflat hoses meet NSF61 standard, which are appropriate for transfering potable water.

Asoe designs and manufactures hose couplings which works with Asoe hoses. According to different technical requirement in different applications, Asoe team design appropriate couplings. The materials applied in couplings are aluminum, carbon steel, stainless steel 304, SS316, SS316L, PA6 reinforced Nylon, PE, and PP etc. The couplings includes LDHC series of couplings, HPHC FM couplings, Storz couplings, camlocks, instantaneous forestry couplings, bauer couplings, etc.

Asoe offer some equipments which are used to handle hoses, assembly hoses, installing hose projects etc.

Asoe team would like to work with its customers to design new customized solutions which no other layflat hoses manufacturer can supply. Asoe team have enthusiasm in challenging new hose solutions and have expertise in hoses manufacturing, designing, and application, which ensure that Asoe can be a strong back for its customers.

Asoe continously created a lot of new hoses solutions in different industries. These webpages can't details all of them. You are welcome to contact Asoe's sales team.
