Roll Flat Hose Pipe With Couplings

Black Polyurethane Lay Flat Discharge Hose with Couplings 4inch 250psi

MILEFLEX PU LAYFLAT HOSES

This hose is made from extruded thermoplastic polyether based polyurethane (TPU) with excellent wear & tear properties.

The reinforcement is made from circular woven filament polyester yarn. The "extrusion through-the-weave" production method gives a very strong bonding between cover and lining as well as firmly encapsulating the woven polyester.

The hose has high resistance against commonly used chemicals and has excellent resistance to UV radiation, hydrolysis and fungus degradation.

The abrasion resistance of the TPU is one of the highest available, making the hose ideal for use in the extremely abrasive environment in open pit mines.

The outer cover has been designed with extra thickness in order to add wear & tear material. This extends the useful lifespan of the hose.

The circular woven filament polyester reinforcement ensures very high tensile strength and facilitates easy towing with tractors without risk of damage.

The interlocking weave prevents the hose from lengthwise extension when pulled or pressurized.

This avoids delamination of cover or lining from the woven reinforcement and minimizes "snaking" and twisting.

This hose can operate in a temperature range from -58 F deg to +167 F deg and can withstand intermittent use up to +176 F deg.

Standard lengths up to 660ft (200 meters). Longer lengths available on request.

Extra abrasion resistance for rugged terrain and extreme conditions
Puncture resistant
Oil and chemicals resistant
UV resistant

Smooth surfaces for easy wash down.

Comparable to

Super Aquaduct of Angus, Mineflex of Hose solutions Inc., Superman HVT of Mandals

Mileflex™TPU Layflat Hose
ID		Wall Thickness		Weight		Working Pressure		Bursting Pressure
Inch	mm	Inch	mm	lbs/ft	kg/m	PSI	bar	PSI	bar
1 1/2	38+1.5	0.09	2.2	0.2	0.3	300	21	900	63
2	51+1.5	0.11	2.7	0.34	0.5	300	21	900	63
2 1/2	64+1.5	0.12	2.9	0.44	0.65	300	21	900	63
3	76+2.0	0.12	3	0.5	0.75	250	17	750	51
4	103+2.0	0.13	3.2	0.78	1.16	250	17	750	51
6	154+2.5	0.17	4.2	1.56	2.33	200	14	600	42
8	204+3.0	0.175	4.5	2.3	3.43	215	15	645	45
10	254+3.0	0.18	4.6	3.08	4.59	200	14	600	42
12	305+3.0	0.185	4.7	3.36	5.01	150	10	450	30

Couplings: LDHC V couplings, LDHC FM Couplings, LDHC S (Storz) Couplings, etc.

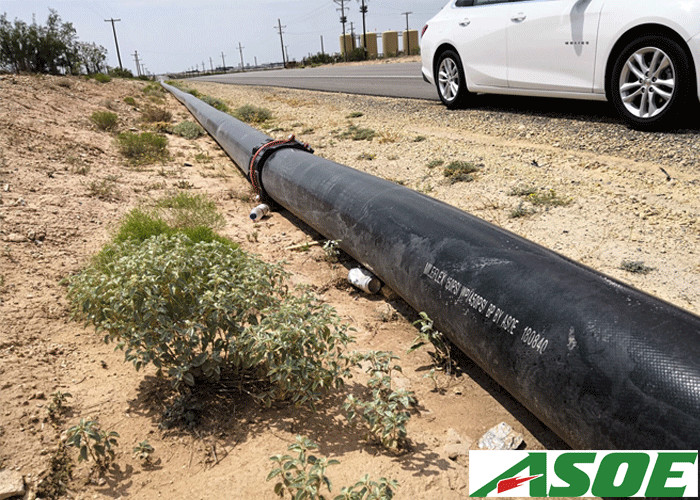

Application: Suitable for use and recommended for frac water transferring, dewatering in mining and water transfer in harsh environment.
